RACKSYNC 3-Phase Industrial Energy Monitoring¶
SDM630MCT-RC | RS-EMON3P
Product Overview¶

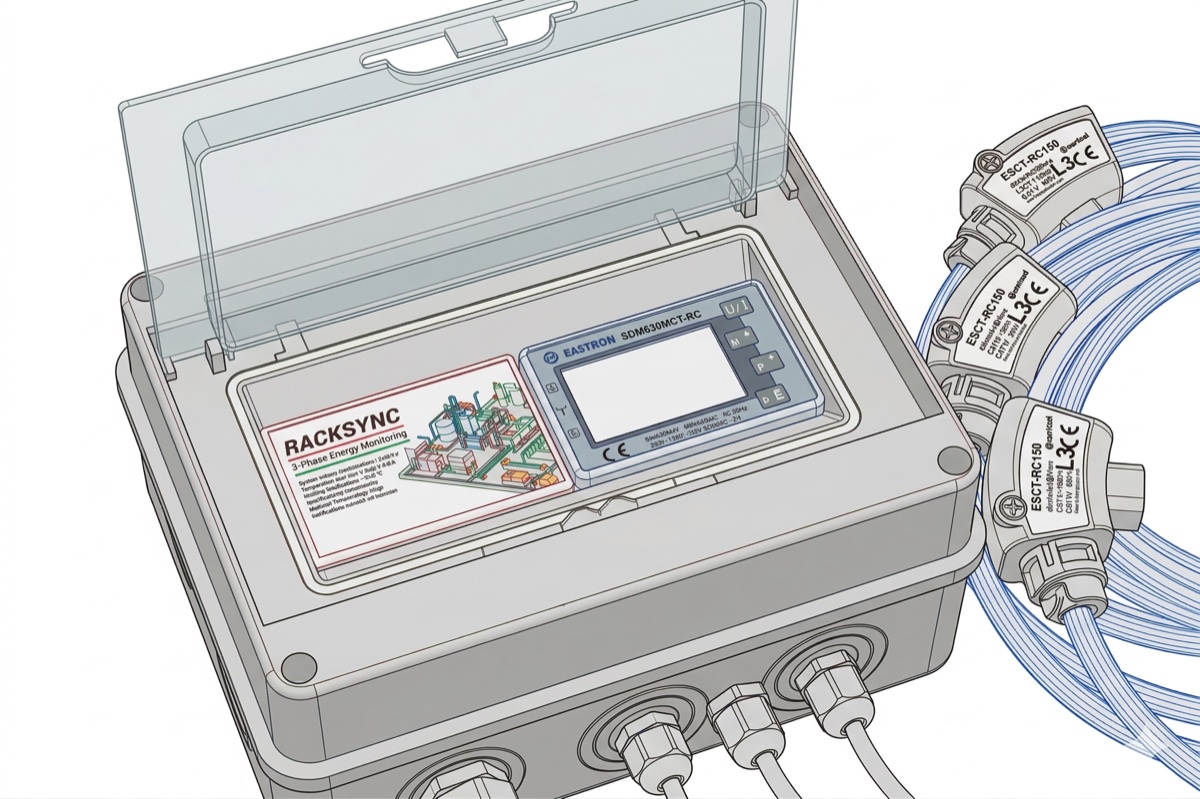

The RS-EMON3P is a DIN-rail mounted 3-phase energy monitoring solution from RACKSYNC. It combines the Eastron SDM630MCT-RC precision energy meter with flexible Rogowski coil current sensors (ESCT-RC series) and an integrated ESP32-C3 IoT controller running Tasmota firmware. The system delivers comprehensive electrical measurement with secure wireless connectivity, designed for straightforward deployment in industrial and commercial electrical distribution panels.
The SDM630MCT-RC meter provides high-accuracy measurement of voltage, current, power, energy, power factor, frequency, and total harmonic distortion across all three phases. The Rogowski coil inputs accommodate conductor sizes from 18 mm up to 85 mm, making the system suitable for retrofit installations where traditional solid-core CTs cannot be fitted. The ESP32-C3 controller bridges the meter's RS485 Modbus RTU interface to Wi-Fi, publishing real-time readings via MQTT with TLS encryption and supporting Home Assistant auto-discovery for immediate integration into building automation systems.
Key Features¶
- 3-Phase Measurement -- Monitors voltage, current, active/reactive/apparent power, power factor, frequency, THD, and imported/exported energy across all three phases plus neutral
- Rogowski Coil Inputs (85 mV/kA) -- Flexible clip-around current sensors compatible with conductor sizes from 18 mm to 85 mm, rated for primary currents up to 10 000 A
- RS485 Modbus RTU -- Industry-standard serial communication interface for reliable data acquisition from the energy meter
- Wi-Fi MQTT with TLS -- Secure wireless connectivity with encrypted MQTT publishing for real-time energy data streaming
- Home Assistant Auto-Discovery -- Plug-and-play integration with Home Assistant via MQTT auto-discovery; no manual entity configuration required
- DIN Rail Mounting -- Compact form factor designed for standard 35 mm DIN rail installation in distribution boards and electrical panels
Target Audience¶
This manual is intended for:
- Qualified electricians responsible for installing and commissioning electrical monitoring equipment
- System integrators designing and deploying industrial energy management and building automation systems
- Facility managers overseeing energy monitoring, metering, and reporting in commercial and industrial facilities
Document Information¶
| Field | Value |
|---|---|
| Product | RACKSYNC 3-Phase Industrial Energy Monitoring |
| Variant | SDM630MCT-RC |
| Version | 1.0.0 |
| Language | English |
| Author | RACKSYNC CO., LTD. |
| Date | 2026-03-31 |
